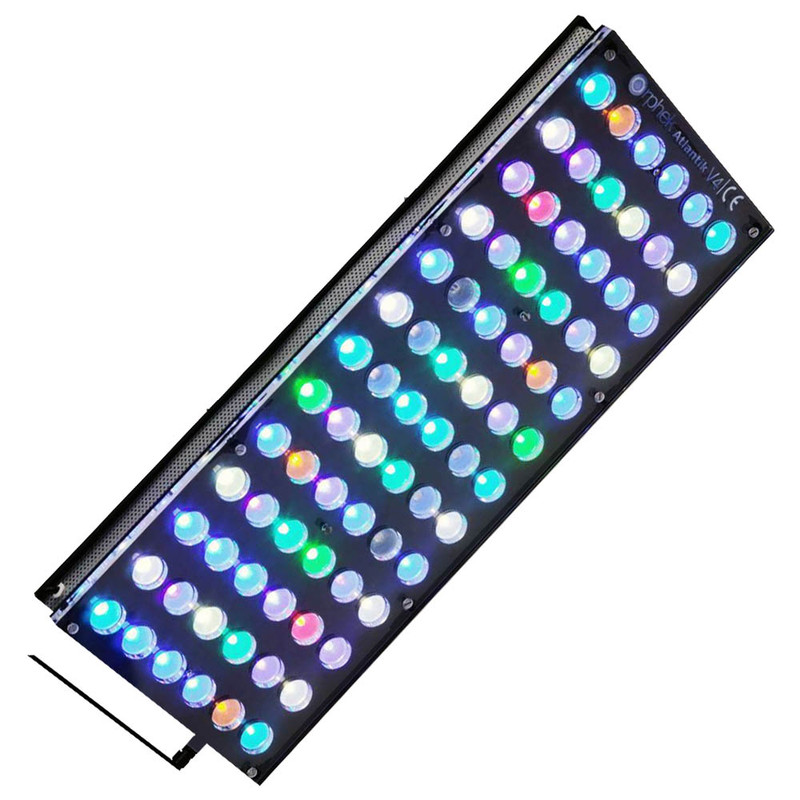

Atlantik V4 (Gen 2) Reef Aquarium LED - Orphek
The Atlantik V4 technology brings built-in wireless control allowing you to easily program, control, and monitor your light(s) from your cell phone or tablet, any time and any place you are in the world, where internet access is available – Internet of Things or IoT.
Why the New ATLANTIK V4 Gen2 is the best product Orphek has produced today?
- 14 new types of custom made dual core LEDs in the nanometer range from 380nm to 850nm.
- Renders most natural appearance to the tank form 10K to 50K
- Provides enough RED and IR LEDs needed
- Contains Full dimming capacity in all channels, 0-100% with progressive dimming.
- Provides IoT technology & Free apps available (App Store & Google play)
- Gives the ability to control and program 200+ individual units!
- Provides the best: PAR/PUR per watt; Highest Spectrum output; and Highest efficiency power supply.
- New 78 customized high efficiency 5w Dual-Chip power LEDs – total of 156 individual LEDs.
- New 14 different types of Dual chip wide range LEDs. 380nm UV to 850nm Infra red!
- First company to introduce the Infra red 850nm
- New Spectrum for better coral growth, color and health.
- Four separate control and programming channels.
SO WHAT IS NEW?
Atlantik V4 combines 14 new types of custom made dual core in the nanometer range from 380nm to 850nm for maximum photochemical efficiency.
What else Orphek is offering?
- A LED light that is made of full body acrylic. Our light is not only solid and durable, but also beautiful to display.
- A LED light that has a length of 24.21” (615mm), a width of 9.37” (238mm) and a height of 2.11” (53.6mm) .
- A LED light that comes not with any driver, but with Mean Well driver (model HLG-240H-48A) – we give you what the market has best to offer!
- A LED light that comes with a customized plug for your region.
- A LED light that comes with a hanging kit with no extra costs.
- A LED fixture providing the lowest consumption Euro X watt.
PROGRAM/CONTROL/MONITORING (IoT) Connectivity & Monitorning
- Built- in Wireless Worldwide Remote and Local programming, control and monitoring
- Compatible with Wi-Fi/ 3G and 4G Internet connectivity
- Compatible with IOS (Iphone and Ipad) and Android (Cell and tablet)
- Free apps available (App Store & Google play)
- Ability to program multiple Atlantiks individually, in groups or in unison.
- Eight pre-installed programs/ unlimited custom programs and group programming.
- Large storage with capacity for additional programs.
- Sunrise / Sunset Full dimming capacity in all channels, 0-100% with progressive dimming.
- Strong clouds / soft clouds
- Demo Mode Color Change (Jellyfish Mode)
CHECK WHAT COMES WITH YOUR LIGHT! (INCLUDED)
- Power cord with waterproof connector
- Stainless steel hanging kit
- Mean well Fan-less IP65 power supply
CHECK WHAT IS ALSO AVAILABLE TO PURCHASE! (NOT INCLUDED)
- 3m extension cable
- ORPHEK Router (You can use your own)
- ORPHEK Gateway2 – ability to control 200+ units.
WHAT ABOUT THE GATEWAY? IS IT NECESSARY TO PURCHASE IT?
YES! YOU NEED TO PURCHASE ORPHEK MASTER GATEWAY. With the Orphek Gateway2 you will be able to enjoy fast, out-of-the-box setup & the ability to control and program your lights from anywhere in the world where internet access is available.
- Light Unit Body Material: Black acrylic housing and silver stainless steel grill
Lens Options: Default :Wide convex 120 degree Custom: For Deep Aquarium 90degree , 60degree , 45degree ,15degree, 5 degree Weight
- Light Unit Weight: 16.7 lbs (7.6kg)
- Power box Weight: 2.2 lbs (1.02 kg)
Package Dimensions / Weight
- Length: 27.55″ (700 mm)
- Width: 17.71″ (450 mm)
- Height: 7″ (180 mm)
- Package Weight:25.35 lbs ( 11.5 kg )
- Package V.W.:26.45 lbs ( 12 kg )
- Power extension cord with waterproof connector from Light Unit to Power Box: total 112? (2.85m)
- Power Cord: 59″ (1.5 m)
- 2 steel cables: 9.84” (250 mm)
- 1 steel cable: 70.86” (1.8 m)
- Length: 24.21” (615mm)
- Width: 9.37” (238mm)
- Height: 2.11” (53.6mm)
- Mean Well Driver Model: HLG-240H-48A
- Input voltage: 100 ~ 240 / VAC277 – VAC for North America only
- Frequency: 47 ~ 63Hz
- Power consumption: 201~235 watt
- PF (power Factor) 0.973
- Input Current (Amps) 0.883
- Input Voltage (V) 217
- Output Voltage(V) 48
- Electrical outlet: Region appropriate
* Input voltage: 100 ~ 240 As lower the input voltage the higher the Power consumption watt Example :110V-1, 107.3V, wattage is 221W, currency is 2.065A.110V-2, 110V, wattage is 216.1W, currency is 1.97A220V-1, 205.2V, wattage is 211W, currency is 1.049A220V-2, 220.2V, wattage is 208.4W, currency is 0.969A.at 230V the wattage is 201W
