Description

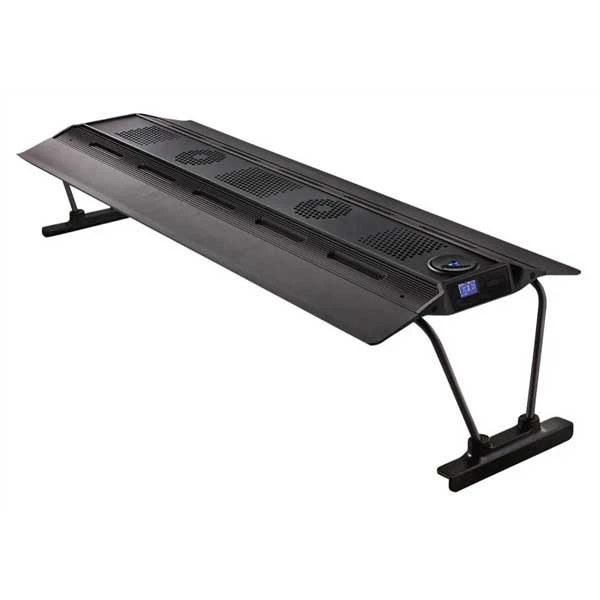

The Maxspect Razor X (RSX) series delivers high-efficiency full-spectrum LED performance built inside an ultra-slim, CNC-processed 6063 architectural-grade aluminum alloy body. Utilizing high-output Cree XLamp (XT-E & XB-D) and EpiLED chips distributed across 50W LED clusters, the RSX combines passive aerodynamic heatsink cooling with temperature-controlled fans to ensure peak LED efficiency and long fixture lifespans.
Designed for medium to large reef aquariums, the RSX lineup features integrated onboard OLED controls, 4-channel spectrum customization, Master/Slave multi-light grouping, and wireless control capability via the optional Maxspect ICV6 controller and Syna-G ecosystem.
Core System Features
- 4-Channel Programmable Spectrum: Full control over Royal Blue, Cool White, Cool Blue, Violet (390–420nm Super Actinic), Cyan, Deep Red, and Warm White diodes across 4 customizable channels.
- 410nm/420nm Super Actinic Spectrum: Key wavelengths targeting Chlorophyll A absorption peaks to maximize coral growth, polyp extension, and vibrant fluorescence.
- On-Board Integrated OLED Controller: Easy 24-hour photoperiod setup and spectrum adjustment directly on the fixture using the built-in OLED display and rotary control dial.
- Master/Slave Synchronization: Wirelessly connect multiple RSX units—programming a designated "Master" fixture automatically mirrors settings across all linked "Slave" fixtures.
- Aerodynamic Hybrid Thermal Management: Passive cooling through the aluminum chassis handles routine operation, while active cooling fans engage automatically when temperatures exceed 131°F (55°C).
- Wireless Mobile Control: Fully compatible with the optional Maxspect ICV6 Connect Controller (sold separately) for total iOS and Android control using the Syna-G app.
Technical Specifications & Comparison
| Specification | RSX R5-150 (160W) | RSX R5-200 (195W) | RSX R5-300 (310W) |
| Power Consumption | ~160W @ 120V | ~195W @ 120V | ~310W @ 120V |
| Fixture Dimensions (LxWxH) | 27.6" x 10.2" x 1.25" | 33.0" x 10.2" x 1.25" | 47.2" x 10.2" x 1.25" |
| LED Clusters (50W each) | 3 Clusters | 4 Clusters | 6 Clusters |
| Total LED Diodes | 60 Diodes | 80 Diodes | 120 Diodes |
| Suitable Tank Length | 27.6" – 37.4" (70–95 cm) | 33.5" – 47.2" (85–120 cm) | 47.2" – 59.0" (120–150 cm) |
| Effective Coverage | 40" x 22" | 48" x 22" | 64" x 22" |
| Maximum Coverage | 48" x 26" | 50" x 26" | 72" x 26" |
| Power Supply Unit (PSU) | Meanwell LRS-200-36 | Meanwell LRS-200-24 | Meanwell LRS-350-24 |
Detailed Model Breakdown
1. Maxspect Razor X RSX 150W (R5-150)
- Target Aquariums: Medium reef displays ranging from 28 to 38 inches in length.
- Light Engine: 3 LED clusters (60 total high-power diodes) providing broad PAR distribution across standard 3-foot tanks.
- Best For: Mixed reefs, LPS, and SPS corals requiring focused actinic spectrum and uniform coverage.
2. Maxspect Razor X RSX 200W (R5-200)
- Target Aquariums: Mid-to-large reef displays ranging from 34 to 48 inches in length.
- Light Engine: 4 LED clusters (80 total high-power diodes) engineered to penetrate deeper water columns up to 24+ inches.
- Best For: Standard 4-foot aquariums and SPS-heavy displays demanding higher PAR output and edge-to-edge light spread.
3. Maxspect Razor X RSX 300W (R5-300)
- Target Aquariums: Large reef displays ranging from 48 to 60+ inches in length.
- Light Engine: 6 LED clusters (120 total high-power diodes) delivering massive light spread and maximum PAR intensity.
- Best For: 4-foot to 5-foot SPS-dominant tanks and deep marine displays looking to replace multiple standalone light fixtures with a single high-output chassis.
What’s Included in Each Box
- 1x Maxspect Razor X (RSX) LED Lighting Fixture
- 1x Extendable Tank-Top Mounting Leg Kit
- 1x Industrial Meanwell Power Supply Unit (PSU) & Power Cord
- 1x User Manual & Quick Start Guide
