Description
The Red Sea REEF-FRAME line blends years of hobbyist feedback with precision engineering and forward-thinking design. Built as a ultimate blank canvas, these systems feature eurobraced ultra-clear glass, hydrodynamically superior piping, high-precision flow control, and marine-spec fortified cabinets.
Available as a Standard version for full equipment customization, or a MAX version equipped with a full ecosystem of ReefBeat smart devices, REEF-FRAME provides a rock-solid, quiet foundation so you can build a stunning, long-lasting aquatic masterpiece.
Core System Features & Innovations
- Eurobraced Ultra-Clear Glass: Engineered with glass thickness up to 15 mm (0.59”), high-grade eurobracing for superior structural integrity, and bonded with high-performance euro-silicone.
- Extra-Fortified Cabinets: Built from marine-spec laminated plywood to support the full contour of the display tank. Includes stainless steel hinges, leveling feet, and cabinet finishes in Black, White, or Classic Oak.
- High-Precision ReefGate Valve: A bespoke, heavy-duty gate valve installed on the downflow pipe that allows micro-adjustments for near-silent overflow operation.
- Hydrodynamically Superior Piping: Enlarged rectangular-profile downflow pipes maximize circulation and eliminate noise. Includes optional connector kits for both Metric and USA standard pipe customization.
- Central Overflow & Surface Skimmer: Conceals all return and drain plumbing within a sleek overflow box featuring removable surface skimming combs for quick maintenance.
- High-Performance REEF SPEC Sump: Includes a dedicated skimmer chamber with adjustable water height, a built-in bubble trap to prevent microbubbles in the display, and a plug-and-play ReefMat-ready mechanical filtration bay (fits ReefMat 250/500/1200, filter socks, and media cups).

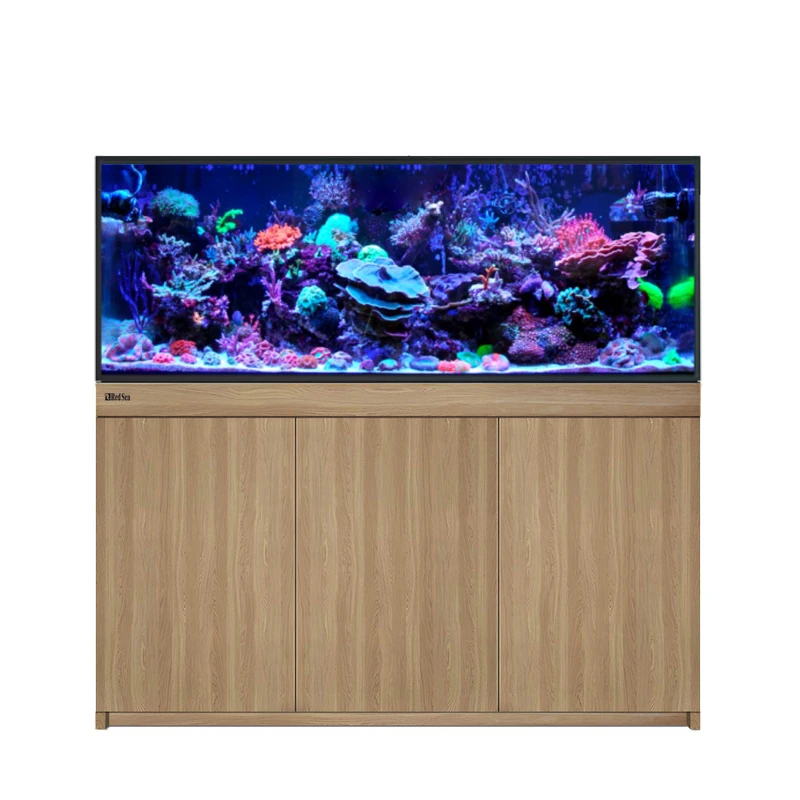

Red Sea REEF-FRAME 500 (136.3 Gal / 516 L System)
Overview
The flagship model of the series, the Red Sea REEF-FRAME 500, delivers nearly 60 inches of display space and 107 gallons of main display capacity. Engineered for large reef communities, it combines 15 mm ultra-clear glass with a 29.3-gallon sump for advanced water management.
Key Highlights
- Maximum Strength Construction: 15 mm (0.59″) heavy-duty ultra-clear glass across all main panels, reinforced with eurobracing for maximum stability.
- High-Capacity Sump System: A full 29.3-gallon sump equipped with an adjustable skimmer chamber, bubble trap, refugium option, and room for automated dosing and top-off systems.
- Redundant Plumbing Design: Dual 25mm return outlets coupled with the ReefGate precision valve allow for custom flow regimes and silent operation.
Technical Specifications
- Total System Volume: 136.3 gal (516 L)
- Display Tank Volume: 107 gal (405 L)
- Sump Volume: 29.3 gal (111 L)
- Display Dimensions (L × W × H): 59.1″ × 22.6″ × 21.6″ (150 cm × 57.5 cm × 55 cm)
- Total System Height: 55.9″ (142 cm)
- Glass Thickness: 15 mm (0.59″) heavy-duty glass across all viewing panels
- Pump Return Outlets: 2x 25mm curved outlets (Single or dual pump compatible)
- Refugium Chamber: Yes (Includes optional sump divider)
| REEF-FRAME 170 | REEF-FRAME 250 | REEF-FRAME 350 | REEF-FRAME 500 | |
| Total system water volume | 46.2 gal | 65 gal | 93.4 gal | 136.3 gal |
| Display tank water vol. | 35.9 gal | 53.9 gal | 74.6 gal | 107 gal |
| In-Cabinet sump water vol. | 10.3 gal | 11 gal | 18.8 gal | 29.3 gal |
| Display tank Length | 23.6 " | 35.4 " | 47.2 " | 59.1 " |
| Display tank width | 20.1 " | 20.1 " | 21.6 " | 22.6 " |
| Display tank height (excluding light unit) | 20.9 " | 20.9 " | 20.9 " | 21.6 " |
| Total system height (excluding light unit) | 53.9 " | 53.9 " | 53.9 " | 55.9 " |
| Ultra-clear front glass | 0.39 " | 0.47 " | 0.47 " | 0.59 " |
| Ultra-clear side glass | 0.47 " | 0.47 " | 0.59 " | 0.59 " |
| Bottom glass | 0.39 " | 0.47 " | 0.47 " | 0.59 " |
| Back glass thickness | 0.31 " | 0.39 " | 0.47 " | 0.59 " |
| Bracing | Euro brace | Euro brace | Euro brace | Euro brace |
| Aquarium Support | Full cabinet | Full cabinet | Full cabinet | Full cabinet |
| ReefLED advanced light system | Not included | Not included | Not included | Not included |
| Water circulation | Not included | Not included | Not included | Not included |
| Main system pump | Not included | Not included | Not included | Not included |
| Return outlet nozzles | 1x 25mm (Single pump) | 1x 25mm (Single pump) | 2x 25mm (Single or dual pump) | 2x 25mm (Single or dual pump) |
| Hydrodynamic piping with Gate valve | Yes | Yes | Yes | Yes |
| Protein Skimmer | Not included | Not included | Not included | Not included |
| ReefMat / NanoMat | Not included | Not included | Not included | Not included |
| Slide out control panel | Not included | Not included | Not included | Not included |
| ReefControl Controller | Not included | Not included | Not included | Not included |
| ATO Module with integrated Temp Sensor | Not included (ATO Ready) | Not included (ATO Ready) | Not included (ATO Ready) | Not included (ATO Ready) |
| ReefSense pH & Temp Probe | No | No | No | No |
