Description
This premium bundle combines the advanced ORCA MK2 oscillating mount with the highly efficient Turbelle® nanostream 6075 pump. It is a complete, "Plug & Play" system designed to bring dynamic, natural reef currents to your aquarium by physically rotating the pump while simultaneously managing its flow output.
The Pump: Turbelle nanostream 6075 (HUB Edition)
Included in this kit is the Tunze 6075, a next-generation electronic stream pump known for its extreme energy efficiency and compact power.
-
Performance: Delivers a controllable flow rate of 2,700 to 7,500 l/h (approx. 700 to 2,000 US gal./h).
-
Extreme Efficiency: Operates with a power consumption of only 1 to 8 Watts. This equates to an efficiency rating of over 937 l/h per Watt, making it one of the most eco-friendly pumps in its class.
-
Durability: Features a Titanium-Steel Alloy Axle for maximum resistance to wear and corrosion, ensuring long-term reliability in harsh saltwater environments.
-
Cable: Equipped with a high-tech, abrasion-resistant cable designed specifically for the constant movement required by the ORCA system.

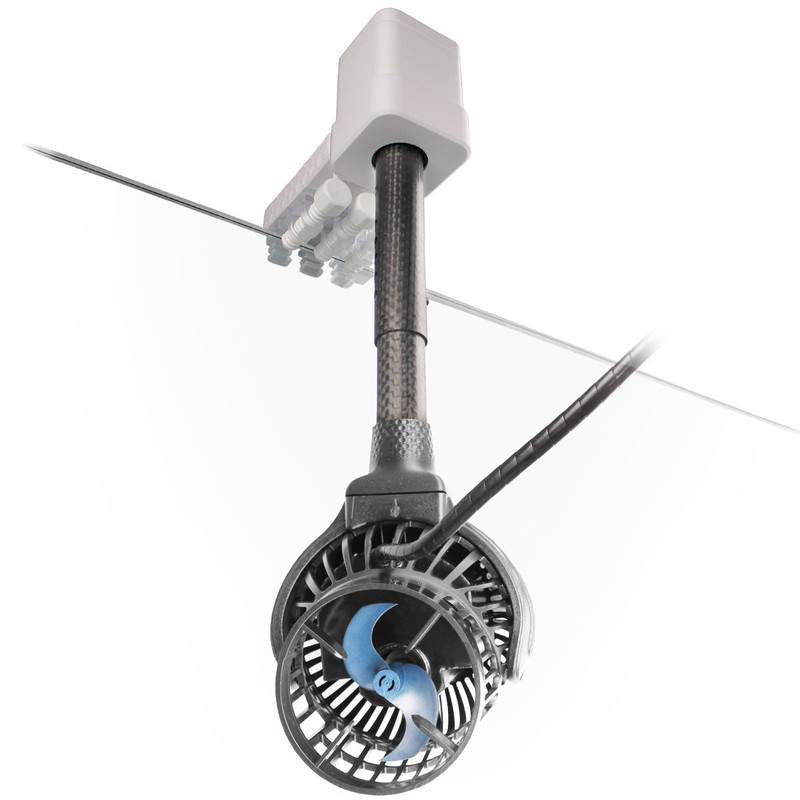

The Mount: ORCA MK2 Oscillating Unit
The motorized mount transforms the steady stream of the 6075 into a sweeping, chaotic flow that eliminates dead spots and stimulates coral health.
-
Smart Oscillation: The unit physically rotates the pump within the tank. Using the Reef Assistant App, you can define the exact range of motion and speed of rotation.
-
Flow Sculpting (Sync Technology): The system allows you to synchronize the pump's power with its angle.
-
Example: Program the pump to run at 100% intensity when pointing across the longest part of the tank, but drop to 30% intensity when it sweeps past a sensitive coral colony or sand bed.
-
-
Magnetic Encoder: An integrated sensor constantly tracks the pump's position, ensuring it never drifts off course and always points exactly where the program dictates.
Construction & Installation
-
Carbon Fiber Shaft: The submersible vertical tube is made of carbon fiber, offering superior rigidity and lightweight performance while being completely corrosion-proof.
-
Silent & Waterproof: The motor block and electronics are fully encapsulated in PU resin, making the unit waterproof (safe against splashes and temporary submersion) and virtually silent during operation.
-
Versatile Mounting: The clamp is designed for both rimless and euro-braced aquariums, fitting glass thicknesses up to 22 mm (0.87"). It allows for tool-free height adjustment.
Technical Specifications (Kit)
-
Pump Model: Turbelle® nanostream® 6075 (HUB Edition)
-
Flow Rate: 2,700 - 7,500 l/h (700 - 2,000 US gal./h)
-
Mount Capacity: Glass up to 22 mm (0.87") thick
-
Power Consumption: 1 - 8 W
-
Control Interface: WiFi via Tunze Reef Assistant App (iOS & Android)
-
Includes: ORCA MK2 Oscillator, Turbelle 6075 Pump, Power Supply Unit, Mount, and Cabling.
